CPC - Colder Products Company | Products | 通用連接器 | NS212 系列接頭印刷和墨水管理應用

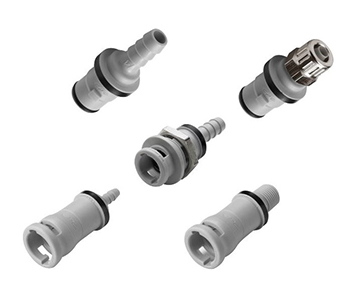

CPC NS212 Series couplings twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves
CPC NS212 Series couplings pdf catalog download

CPC NS212系列接頭跟CPC其它無溢漏系列的接頭一樣，為提供快速、安全、真正無泄漏管線連接而設計。NS212提供了一種快速、旋接式接頭，帶一體式鎖緊裝置和雙面無泄漏截止閥。NS212 亦具有抗化學性，是許多應用的理想產品。CPC NS212 Series couplings were built on the company’s proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS212 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS212 is also chemically resistant making it ideal for a diverse range of applications.

CPC NS2 SERIES - POLYPROPYLENE QUICK CONNECT/DISCONNECT
NS2 Series non-spill couplings PDF Catalog

NS212 系列接頭建立在公司經過驗證的防溢閥平臺之上，旨在提供快速、安全和幾乎無泄漏的流體管路連接。NS212 是一種簡單的扭轉連接接頭，帶有集成鎖定機構和雙面防溢截止閥。NS212 還具有耐化學性，使其成為各種應用的理想選擇。NS2 系列防溢流接頭可實現快速、安全且幾乎無泄漏的流體管路連接。對于印刷和墨水管理、分析儀器、電子冷卻和其他應用，快速接頭傳輸大量流體，但它們在物理上占用的空間很小�？焖俳宇^使用扭轉連接鎖定機制。雙面無泄漏截止閥增加了安全性和便利性。接頭提供軟管倒鉤端接，可用于管道1/8英寸（3.2 毫米）和 1/4英寸（6.4 毫米）內徑。配置包括管螺紋、直插式和面板安裝。

特點與優勢

特征		好處
	高效、無泄漏設計		帶壓斷開，無泄漏
	多種密封材料		廣泛的化學兼容性，適用于各種應用
	扭轉連接鎖定		簡單、無泄漏的緊密連接空間
	緊湊的設計		小連接器中的高流量
	超低空氣夾雜物		最大限度地減少污染物，減少清洗管線的需要

規格和 Cv 值

操作條件（流體輸送）

材料

其他

CV值

功能與效益

FeaturesBenefits
Efficient, non-spill designDisconnect under pressure with no spills
Multiple seal materials
Broad chemical compatibility for diverse applications

Twist-to-connect locking
Easy, non-spill connections in tight

spaces

Compact design
High flow in a small connector

Ultra low air inclusion
Minimizes contaminants, reduces the need to purge lines

產品規格

Pressure:Vacuum to 45 psi, 3.1 bar
Temperature:32° F to 120° F/0° C to 49°C
Flow capacity: Cv~0.45
Spillage:<0.025 cc/disconnect
Inclusion:0.009 cc/connect
Materials:
Main components and valves:Glass-filled polypropylene
Valve spring: 316 stainless steel
Seal material: EPDM (FKM/Simriz FFKM optional)
Color:Gray with black accent standard
Tubing Sizes:1/8" to 1/4" (3.2mm to 6.4mm)

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility
to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide.

Cv值

Cv ~0.45

Legend

NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings’ use a twist-to-connect locking mechanism.Double-sided non-spill shutoff valves add safety and convenience. The couplings offer hose barb terminations and are available for tubing in 1/8 in. (3.2 mm) and 1/4 in. (6.4 mm) ID. Configurations include pipe thread, in-line and panel mount.

產品Bodies母頭

NS2D100212 1/8 NPT Valved Coupling Body	NS2D120412 1/4 PTF Valved Panel Mount Coupling Body	NS2D130412 1/4 PTF Valved In-Line Coupling Body	NS2D160212 1/8 Hose Barb Valved Coupling Body
NS2D160412 1/4 Hose Barb Valved Coupling Body	NS2D170212 1/8 Hose Barb Valved In-Line Coupling Body	NS2D170412 1/4 Hose Barb Valved In-Line Coupling Body

Inserts公頭

NS2D200412 1/4 PTF Valved In-Line Coupling Insert	NS2D220212 1/8 Hose Barb Valved In-Line Coupling Insert	NS2D220412 1/4 Hose Barb Valved In-Line Coupling Insert	NS2D240212 1/8 NPT Valved Coupling Insert

NS2D1002121/8" Male NPTBody - ValvedEPDMPolypropylene
NS2D1204121/4" OD Ferruless Poly-TubeBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1304121/4" OD Ferruless Poly-TubeBody - ValvedEPDMPolypropylene
NS2D1602121/8" Hose BarbBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1604121/4" Hose BarbBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1702121/8" Hose BarbBody - ValvedEPDMPolypropylene
NS2D1704121/4" Hose BarbBody - ValvedEPDMPolypropylene
NS2D2004121/4" OD Ferruless Poly-TubeInsert - ValvedEPDMPolypropylene
NS2D2202121/8" Hose BarbInsert - ValvedEPDMPolypropylene
NS2D2204121/4" Hose BarbInsert - ValvedEPDMPolypropylene
NS2D240212 1/8" Male NPT Insert - Valved EPDM Polypropylene

NS2 快速接頭在小尺寸、安全和經濟的情況下提供經濟高效、高流量的流體管路傳輸

明尼蘇達州圣保羅 - 2007 年 1 月 15 日 - Colder Products Company 的新型緊湊型、無溢出快速斷開快速接頭為用戶提供具有快速、安全且幾乎無泄漏的流體管路連接。正在申請專利的 NS2 快速接頭是印刷和墨水管理、分析儀器、電子冷卻和許多其他應用的絕佳選擇，可在較小的占地面積內提供高流量的流體傳輸。

Colder 工業市場業務部經理 Andy Hass 表示：“這款 NS2 系列快速斷開接頭建立在我們行業領先的防溢閥平臺之上，體現了我們對易于使用的高質量接頭的承諾和持續投資。”產品公司�！皩τ谛枰�安全輸送流體的應用，NS2 提供了一種簡單的扭轉連接鎖定機構和雙面防溢截止閥，以增加安全性和便利性�！�

NS2 滿足了對更小、更具成本效益的工業快速接頭的需求。較小的快速接頭可以替代較大的快速接頭，為用戶提供適用于各種快速接頭應用的低成本、節省空間的選擇。新的接頭還提供非常低的空氣夾雜物 - 連接時將空氣引入接頭 - 最大限度地減少污染物并減少清洗流體管線的需要。

Colder NS2 系列快速斷開接頭提供軟管倒鉤端接，可用于內徑為 1/8" (3.2mm) 和 1/4" (6.4mm) 的管道。配置包括管螺紋、直插式和面板安裝。無箍壓縮終端連接到 ?" OD (6.4mm) 和 0.17" ID (4.3mm) 半剛性管。壓力范圍從真空到 45 psi (3.1 bar)，工作溫度范圍從 32° F (0° C) 到 120° F (49° C)。

NS2 Series 1/8" Flow Dry Break, Quick Disconnect Coupling, Colder Products Company
# ITEM

NS2D100212 1/8" Male NPT Body - Valved EPDM Polypropylene
NS2D120412 1/4" OD Ferruless Poly-Tube Body - Panel Mount - Valved EPDM Polypropylene
NS2D130412 1/4" OD Ferruless Poly-Tube Body - Valved EPDM Polypropylene
NS2D160212 1/8" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D160412 1/4" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D170212 1/8" Hose Barb Body - Valved EPDM Polypropylene
NS2D170412 1/4" Hose Barb Body - Valved EPDM Polypropylene
NS2D200412 1/4" OD Ferruless Poly-Tube Insert - Valved EPDM Polypropylene
NS2D220212 1/8" Hose Barb Insert - Valved EPDM Polypropylene
NS2D220412 1/4" Hose Barb Insert - Valved EPDM Polypropylene

NS2D100212

1/8 NPT Valved Coupling Body

NS2D120412

1/4 PTF Valved Panel Mount Coupling Body

NS2D130412

1/4 PTF Valved In-Line Coupling Body

NS2D160212

1/8 Hose Barb Valved Coupling Body

NS2D160412

1/4 Hose Barb Valved Coupling Body

NS2D170212

1/8 Hose Barb Valved In-Line Coupling Body

NS2D170412

1/4 Hose Barb Valved In-Line Coupling Body

Inserts

NS2D200412

1/4 PTF Valved In-Line Coupling Insert

NS2D220212

1/8 Hose Barb Valved In-Line Coupling Insert

NS2D220412

1/4 Hose Barb Valved In-Line Coupling Insert

NS2D240212

1/8 NPT Valved Coupling Insert

NS2 Couplings
APRIL 15, 2009 BY COUPLING

The NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings' use a twist-to-connect locking mechanism.
