Colder's LC Series chrome-plated brass couplings鍍鉻黃銅金屬接頭
CPC - Colder Products Company | Products | 通用連接器 | LC 系列金屬快速接頭資料下載
耐高溫能力 額定溫度可達204°C
CPC LC 系列快速接頭鍍鉻黃銅接頭結構堅固，可耐用于苛刻的應用環境。作為高溫高壓環境中的理想選擇，LC系列特點為快速方便地進行單手接斷操作。該系列接頭產品可提供多種配置和端頭的靈活選擇，
且與PLC聚甲醛及PLC12聚丙烯系列接頭均可配用。Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. Also available in NSF-listed versions.

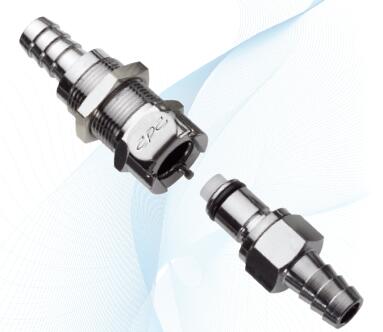

Colder's LC Series chrome-plated brass couplings
CPC LC 系列快速接頭鍍鉻黃銅接頭
功能與效益
特點優點
- 黃銅材料
- 耐用，能夠承受較高的壓力和溫度
- 鍍鉻 漂亮的外觀
- 耐高溫能力 額定溫度可達204°C
- 兼容性好
- 可與PLC系列配合使用
產品規格
- 壓力:真空至 250 psi, 17.3 bar
- 溫度: -40°C to 82°C
- 材料:
主要元件和閥:鍍鉻黃銅
指鎖: 不銹鋼
閥: 聚甲醛
閥簧: 316 不銹鋼
外簧和銷: 不銹鋼
O型圈:
Buna-N丁腈橡膠
涂層:鉻
管道尺寸: 1/4" to 3/8"〞內徑， 6.4mm to 9.5mm〞內徑
警告：壓力、溫度、化學品和工作環境可影響接頭的性能。測試CPC產品是否適宜應用條件屬于客戶責任。
Cv值
Material:Polypropylene
Tubing Range:1/4"to 3/8" (6.4mm to 9.5mm)
Feature:Chemically resistant for corrosive applications
Cv ~ 1.40 (20.17) 大
Cv ~ 0.82 (11.82) 大
Cv ~ 0.51 (7.35) 大
Legend
產品Bodies
|
|
|
|
LC10004
1/4 NPT Non-Valved Coupling Body |
LC10004BSPT
1/4 BSPT Non-Valved Coupling Body |
LC10006
3/8 NPT Non-Valved Coupling Body |
LC10006BSPT
3/8 BSPT Non-Valved Coupling Body |
|
|
|
|
LC12004
1/4 PTF Non-Valved Panel Mount Coupling Body |
LC12006
3/8 PTF Non-Valved Panel Mount Coupling Body |
LC13004
1/4 PTF Non-Valved In-Line Coupling Body |
LC13006
3/8 PTF Non-Valved In-Line Coupling Body |
|
|
|
|
LC15004
1/4 NPT Non-Valved Panel Mount Coupling Body |
LC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body |
LC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body |
LC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body |
|
|
|
|
LC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body |
LC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body |
LC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body |
LCD10004
1/4 NPT Valved Coupling Body |
|
|
|
|
LCD10004BSPT
1/4 BSPT Valved Coupling Body |
LCD10006
3/8 NPT Valved Coupling Body |
LCD10006BSPT
3/8 BSPT Valved Coupling Body |
LCD12004
1/4 PTF Valved Panel Mount Coupling Body |
|
|
|
|
LCD12006
3/8 PTF Valved Panel Mount Coupling Body |
LCD13004
1/4 PTF Valved In-Line Coupling Body |
LCD13006
3/8 PTF Valved In-Line Coupling Body
|
LCD15004
1/4 NPT Valved Panel Mount Coupling Body |
|
|
|
|
LCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body |
LCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body |
LCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body |
LCD17004
1/4 Hose Barb Valved In-Line Coupling Body |
|
|
|
|
LCD17005
5/16 Hose Barb Valved In-Line Coupling Body |
LCD17006
3/8 Hose Barb Valved In-Line Coupling Body |
PLC300
Coupling Body Plug |
PLC310
Coupling Body Plug |
Inserts
|
|
|
|
LC20004
1/4 PTF Non-Valved In-Line Coupling Insert |
LC20006
3/8 PTF Non-Valved In-Line Coupling Insert
|
LC21004
1/4 PTF Non-Valved Elbow Coupling Insert |
LC21006
3/8 PTF Non-Valved Elbow Coupling Insert |
|
|
|
|
LC22004
1/4 Hose Barb Non-Valved In-Line Coupling Insert |
LC22005
5/16 Hose Barb Non-Valved In-Line Coupling Insert
|
LC22006
3/8 Hose Barb Non-Valved In-Line Coupling Insert |
LC23004
1/4 Hose Barb Non-Valved Elbow Coupling Insert |
LC10004
1/4 NPT Non-Valved Coupling Body
LC10004BSPT
1/4 BSPT Non-Valved Coupling Body
LC10006
3/8 NPT Non-Valved Coupling Body
LC10006BSPT
3/8 BSPT Non-Valved Coupling Body
LC12004
1/4 PTF Non-Valved Panel Mount Coupling Body
LC12006
3/8 PTF Non-Valved Panel Mount Coupling Body
LC13004
1/4 PTF Non-Valved In-Line Coupling Body
LC13006
3/8 PTF Non-Valved In-Line Coupling Body
LC15004
1/4 NPT Non-Valved Panel Mount Coupling Body
LC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body
LC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body
LC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body
LC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body
LC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body
LC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body
LCD10004
1/4 NPT Valved Coupling Body
LCD10004BSPT
1/4 BSPT Valved Coupling Body
LCD10006
3/8 NPT Valved Coupling Body
LCD10006BSPT
3/8 BSPT Valved Coupling Body
LCD12004
1/4 PTF Valved Panel Mount Coupling Body
LCD12006
3/8 PTF Valved Panel Mount Coupling Body
LCD13004
1/4 PTF Valved In-Line Coupling Body
LCD13006
3/8 PTF Valved In-Line Coupling Body
LCD15004
1/4 NPT Valved Panel Mount Coupling Body
LCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body
LCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body
LCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body
LCD17004
1/4 Hose Barb Valved In-Line Coupling Body
LCD17005
5/16 Hose Barb Valved In-Line Coupling Body
LCD17006
3/8 Hose Barb Valved In-Line Coupling Body
PLC300
Coupling Body Plug
PLC310
Coupling Body Plug
Inserts
LC20004
1/4 PTF Non-Valved In-Line Coupling Insert
LC20006
3/8 PTF Non-Valved In-Line Coupling Insert
LC21004
1/4 PTF Non-Valved Elbow Coupling Insert
LC21006
3/8 PTF Non-Valved Elbow Coupling Insert
LC22004
1/4 Hose Barb Non-Valved In-Line Coupling Insert
LC22005
5/16 Hose Barb Non-Valved In-Line Coupling Insert
LC22006
3/8 Hose Barb Non-Valved In-Line Coupling Insert
LC23004
1/4 Hose Barb Non-Valved Elbow Coupling Insert
|
