CPC醫療用衛生接頭Sanitary connections
Sanitary couplings
衛生接頭
衛生型接頭直接連接至通常小為3/4且大為1"的衛生型連接器，無需使用笨重的接合器和管線裝配。直接連接可保證更快地連接或具有彈性的管線系統斷開。Sanitary couplings attach directly to popular 3/4" mini and 1" maxi size sanitary connections, eliminating the need for cumbersome adapters or tubing assemblies. Direct attachment allows faster connection to and disconnection from installed, rigid and flexible piping systems.
功能與效益
符合人體工學的拇指閂鎖
即使戴著手套亦可便捷操作
3/4”和1”衛生型端頭
使用標準墊片和夾具安裝
兼容MPC和MPX系列接頭
易于轉換為工業標準連接或單次使用系統
無BSE/TSE的材料
符合ADCF要求
產品規格
規格
壓力：真空至60psi 4.14 bar
溫度：
-40oF到300oF（-40oC到149oC）
材料：
主要部件：
聚砜樹脂（淡琥珀色），USP VI 等級認證,
ADCF
O 型圈（接合插嘴）：硅樹脂（透明），鉑金
固化，USP VI 等級認證, ADCF
滅菌：
伽瑪輻射：大達50k Gy輻射
高壓蒸汽滅菌器：大270oF（132oC）
，60分鐘，多25次
重復，僅限斷開時滅菌
端頭尺寸：3/4"和1"衛生型
Cv值
straight-through Cv ~ 5.5 (79.25) 大 with MPC inserts and 14.2 (204.60) 大 with MPX inserts

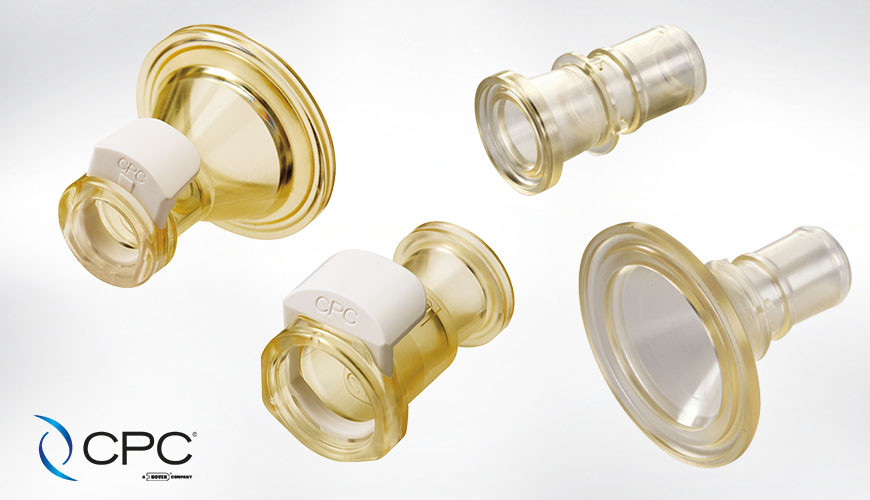

CPC Sanitary coupling
SANITARY
CPC Sanitary coupling attaches directly to ?", 1" and 1?" sanitary terminations to provide greater flexibility for integrating components into single-use or hybrid (single-use to stainless) process systems.Attach directly to popular 3/4" mini and 1" maxi size sanitary connections and eliminate the need for cumbersome adapters or tubing assemblies. Direct attachment allows faster connection to and disconnection from installed, rigid and flexible piping systems.
Sanitary Series Couplings: Medical-Grade Polysulfone, 3/4" Mini and 1" Maxi
Standard bag systems with quick couplings can be easily connected to equipment with sanitary terminations, while single-use cartridge filters can be converted to incorporate quick couplings for greater system modularity.
Ergonomic thumb latch allows for easy operation - even with gloved hands
?" mini and 1"maxi sanitary & 1?" sanitary terminations are installed with standard gaskets and clamps
Compatibility with MPC and MPX Series and Back-to-Back adaptors provides for easy conversion to industry standard connections on single-use systems
BSE/TSE free materials meet ADCF requirements
SPECIFICATIONS
Pressure: Vacuum to 60 psi, 4.14 bar
Temperature: -40°F (-40°C) to 300°F (149°C)
Main components: Polysulfone (amber tint), USP Class VI, ADCF
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
Sanitary sizes: ?" mini and 1" maxi and 1?"
Autoclave Sterilization: At 270°F (132°C) for 60 minutes, up to 25 cycles
EtO Sterilization: Up to five cycles
Gamma irradiation Sterilization: Up to 50 Kilograys
E-Beam Sterilization: Up to 50 Kilograys
產品Bodies
3/4 Sanitary Non-Valved Coupling Body
MPC3301239
3/4 Sanitary Non-Valved Coupling Body
1 Sanitary Non-Valved Coupling Body
MPC3301639
1 Sanitary Non-Valved Coupling Body
3/4 Sanitary Coupling Body
MPX3301239
3/4 Sanitary Coupling Body
Inserts
3/4 Sanitary Non-Valved MPC Coupling Insert
MPC44012T39M
3/4 Sanitary Non-Valved MPC Coupling Insert
1 1/2 Sanitary Non-Valved MPC Coupling Insert
MPC44024T39M
1 1/2 Sanitary Non-Valved MPC Coupling Insert
3/4 Sanitary Non-Valved MPX Coupling Insert
MPX44012T39M
3/4 Sanitary Non-Valved MPX Coupling Insert
1-1/2 Sanitary Non-Valved MPX Coupling Insert
MPX44024T39M
1-1/2 Sanitary Non-Valved MPX Coupling Insert
|
