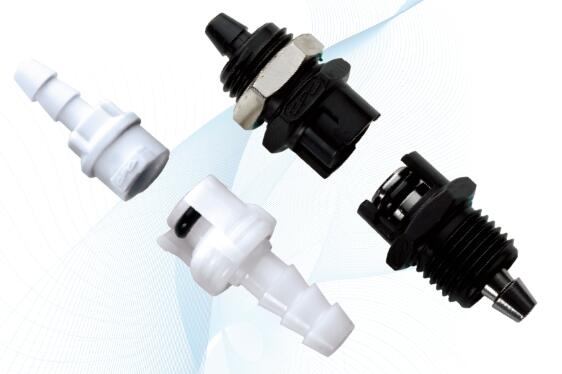

CPC SMC Polycarbonate 聚碳酸酯系列醫療用旋接式接頭
CPC SMC Polycarbonate series couplings
SMC Polycarbonate 聚碳酸酯系列
CPC SMC聚碳酸酯系列是旋接式接頭，為魯爾式連接器提供可靠的替代產品。這種接頭在進行管道連接時還可以自由旋轉，該重要特點既可防止管道扭結，也可防止使用過程中的意外斷開。SMC Polycarbonate series couplings are a twist-to-connect coupling that provides a reliable and more secure alternative to luer-type connections. It also allows for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use.
CPC SMC Polycarbonate 聚碳酸酯系列醫療用旋接式接頭
CPC SMC Polycarbonate series couplings
功能與效益特點優點
旋接式 防止意外斷開
接頭可隨意旋轉 消除了管道扭結的可能
安全，防止誤連接
不可與魯爾接頭通用
產品規格
壓力: 真空至 to 100 psi, 6.9 bar
溫度: -40°C to 121°C
材料:
主要元件:
Polycarbonate, USP Class VI, ADCF 聚碳酸酯,USP六等級,ADCF
鎖套: 聚碳酸酯,USP六等級,ADCF
O 型圈: 丁晴橡膠, USP五等級,ADCF
顏色(主體): 淺紫色
管道尺寸: 1/16" 至1/8"ID，1.6mm 至3.2mm ID
*注：管內徑1/16 寸的管道，大管外徑為0.15寸
Colder SMC Air Flow, 100 psig Inlet Pressure Colder SMC Water Flow
警告：壓力、溫度、化學品和工作環境可影響接頭的性能。測試CPC產品是否適宜其應用環境屬于客戶責任。
Cv值
straigh-through Cv ~ 0.19 (2.74) max
single shut-off Cv ~ 0.08 (1.15) max
產品Bodies
1/16 Hose Barb Non-Valved In-Line Coupling Body
SMF0191
1/16 Hose Barb Non-Valved In-Line Coupling Body
1/8 Hose Barb Non-Valved In-Line Coupling Body
SMF0291
1/8 Hose Barb Non-Valved In-Line Coupling Body
Inserts
1/16 Hose Barb Non-Valved Coupling Insert
SMM0191
1/16 Hose Barb Non-Valved Coupling Insert
1/8 Hose Barb Non-Valved Coupling Insert
SMM0291
1/8 Hose Barb Non-Valved Coupling Insert
Other
1/16 Hose Barb Non-Valved In-Line Coupling Set
SMC0191
1/16 Hose Barb Non-Valved In-Line Coupling Set
1/8 Hose Barb Non-Valved In-Line Coupling Set
SMC0291
1/8 Hose Barb Non-Valved In-Line Coupling Set
|
