AseptiQuik G不分公母無菌連接器 AseptiQuik/無菌連接器 AseptiQuik G
Genderless AseptiQuik G Connectors
AseptiQuik G
AseptiQuik G不分公母無菌連接器即使在非無菌環境中，也能實現快速的無菌連接，易于使用的無公母設計簡化了一次性系統集成設計，大限度地減少操作失誤的風險。連接器堅固的構造提高了產品性能， 同時增強了用戶信心，不需要使用卡箍、夾具或焊管機。生物制藥生產商受益于全方位可互換的1/4" 至3/4" 的流體解決方案，通過一次性連接技術的領導者所提供的高質量連接器，實現無菌連接。Genderless AseptiQuik G Connectors enable quick and easy sterile connections, even in non-sterile environments. The easy-to-use genderless design simplifies system integration and minimizes the risk of operator error. The connectors' robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from a full range of interchangeable 1/4” to 3/4” flow solutions with the quality and market availability they expect from the leader in single-use connection technology.
AseptiQuik 一次性使用的佳選擇
AseptiQuik G Video
功能與效益
Genderless Design
Eases integration of single-use systems
with universal mating between G connectors
Robust construction
Repeatable and reliable performance
with no additional hardware required
FLIP-CLICK-PULL
Innovative three-step connection process
reduces risk of operator error
Integrated pull tab covers
Pull tabs act as protective cover reducing
covers part complexity and ensure simultaneous
removal of both membranes
CPC Click
Audible confirmation of assembly
產品規格
Pressure: Up to 60 psi, 4.1 bar
Up to 75 psi, 5.1 bar for 48 hours
Temperature: 34°F to 104°F (1°C to 40°C)
Sterilization:
Gamma: Up to 50kGy irradiation
Up to 50kGy irradiation
AutoClave High Temp (HT) Version:
Up to 266°F (130°C) for 30 minutes
Termination Size:
1/4", 3/8”, 1/2", 3/4" ID hose barb (6.4mm,
9.5mm, 12.7mm, 19.0mm) and 3/4" sanitary
Materials:
Main Components:
Polycarbonate (white), USP Class VI, ADCF
Pull Tabs/Caps:
Polycarbonate (blue, standard version),
USP Class VI, ADCF
Polycarbonate (white, HT version),
USP Class VI, ADCF
Seals:
Silicone (clear), platinum-cured,
USP Class VI, ADCF
Membrane:
Polyethylene (standard version),
USP Class VI, ADCF
Hydrophobic polyethersulfone with PTFE strip (HT version),
USP Class VI
AseptiQuik系列連接器
CPC AseptiQuik系列產品便是為幫助制藥商快速輕松地傳輸生物介質而研發，即使在非無菌環境中（在生物制造工藝中）轉移培養基也始終可靠確保無菌。AseptiQuik系列不分公母接頭，在有菌環境中也可以實現快速、方便的無菌連接，降低批量生產中的污染風險。接頭的耐用設計可以保證可靠的性能，且無需使用卡夫、夾具和焊管機，保證可靠性能和可重復性。AseptiQuik可以滿足從1/8英寸到1英寸的各種流量需求。為了進一步簡化生物制藥，CPC在此前傳統方案之上創新了連接技術。作為CPC AseptiQuik G 系列不分公母無菌連接器的最新成員，AseptiQuik G DC 在無菌連接的基礎上增加了無菌斷開功能。AseptiQuik G DC 無需任何輔助設備進行操作，如此制造商能夠顯著提高操作效率，簡單高效。直觀的“翻轉-咔噠-拉拔”三步驟連接過程確保用戶使用方便，降低因操作失誤所導致的風險。
AseptiQuik G Flow
This graph is intended to give you a general idea of the performance capabilities of each product line. The shaded area of the graph represents the operating range of the product family, i.e. upper and lower values are shown. Therefore, depending on the exact coupling configurations selected, you can reasonably expect values to fall within the shaded area.
Cv值
straight-through
Cv 1.74 for ?” to ?” and .19 for 1/8” to 1/8”.
產品
 |
 |
 |
 |
AQG17004
1/4 Hose Barb Genderless AseptiQuik G Connector Body |
AQG17004HT
1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature |
AQG17006
3/8 Hose Barb Genderless AseptiQuik G Connector Body |
AQG17006HT
3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature |
 |
 |
 |
 |
AQG17008
1/2 Hose Barb Genderless AseptiQuik G Connector Body |
AQG17008HT
1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature |
AQG17012
3/4 Hose Barb Genderless AseptiQuik G Connector Body |
AQG17012HT
3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature |
 |
 |
|
|
AQG33012
3/4 Sanitary Genderless AseptiQuik G Connector Body |
AQG33012HT
3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature |
|
|

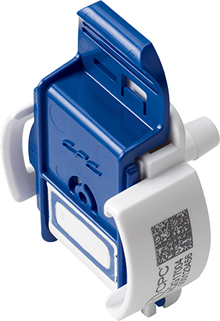

1/4 Hose Barb Genderless AseptiQuik G Connector Body
AQG17004
1/4 Hose Barb Genderless AseptiQuik G Connector Body

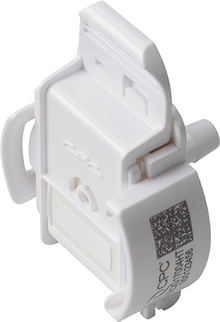

1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17004HT
1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature

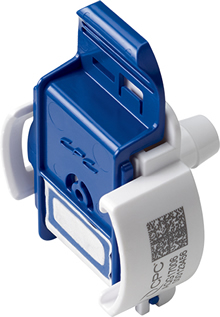

3/8 Hose Barb Genderless AseptiQuik G Connector Body
AQG17006
3/8 Hose Barb Genderless AseptiQuik G Connector Body

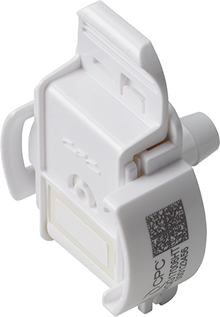

3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature
AQG17006HT
3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature
1/2 Hose Barb Genderless AseptiQuik G Connector Body
AQG17008
1/2 Hose Barb Genderless AseptiQuik G Connector Body
1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17008HT
1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
3/4 Hose Barb Genderless AseptiQuik G Connector Body
AQG17012
3/4 Hose Barb Genderless AseptiQuik G Connector Body
3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17012HT
3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
3/4 Sanitary Genderless AseptiQuik G Connector Body
AQG33012
3/4 Sanitary Genderless AseptiQuik G Connector Body
3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature
AQG33012HT
3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature |
