原裝進口美國Snap-tite拉斷閥

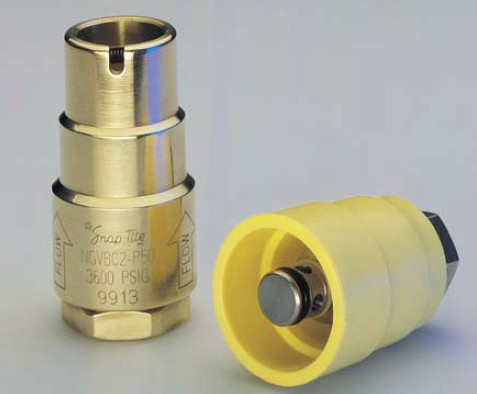

NGVBCN2-P50NR拉斷閥
Compressed Natural Gas (CNG) Inline Hose Breakaway
NGVBCN2-P50
CNG拉斷閥 LNG拉斷閥 安全拉斷閥-CNG拉斷閥-拉斷閥-加氣站拉斷閥-安全拉斷閥-天然氣拉斷閥-LNG拉斷閥產品
閥門有：法蘭和內螺紋兩種連接方式.內螺紋又為3/8和1/2長用.適用于CNG槽車卸車軟管系統，CNG拉斷閥 LNG拉斷閥 安全拉斷閥 加氣站拉斷閥
天然氣拉斷閥可重復拉斷復位使用
NGVBCN2-P50NR拉斷閥
CNG拉斷閥型號B049-21
拉斷閥NGVBCN2-P50,NGVBCN2-P50NR
加氣槍 NGVC2-P36
快換接頭 71-3C16-16F
快換接頭 71-3N16-16F
Snap-tite CNG快速接頭 SNAP-TITE 72C16-16F and 72N16-16F
美國snap-tite液壓快速接頭
工作壓力：3600 Psi;
加注流量：5400 Nm3/hr ;
拉斷力：266.9 ～622.7 N;
連接尺寸：3/8SAE 1/2SAE；
材質：不銹鋼
標準：NGV1
用途：CNG加氣機
拉斷閥拉斷力：400～600N（安全拉斷，并關斷氣源）
Corrosive resistant stainless steel
(303 & 316) construction
- Nipple is equipped with durable polyethylene
bumper to protect the nipple form in the event of a
breakaway
- Disconnect force: 60-140 lbs. (266.9 – 622.7 N) at
any pressure up to operating
- Superior flo- characteristics
- Compact envelope
- Balanced design assures positive connection until
a breakaway cycle is required
- Lightweight design - .95 lbs. (.431 kgs)
- Easy installation
- Reusable following breakaway with minimal repair
Working Pressure: 3600 psi (248 bar)
Burst Pressure: 20,000 psi (1379 bar)
Temperature Range: –40°F (–40°C) to
150°F (66°C)
Weight: .95 lbs (.431 kgs)
Flo- Rate: 2090 SCFM (3551 Nm3/hr)
Material: 303 & 316 Stainless Steel
| Series |
NGV Series |
| Connection Size |
3/8" Female SAE x 3/8" Female SAE Inline Hose Breakaway (non-relieving)
|
| Seal Material |
Polyurethane Crimped |
| Classification |
Natural Gas Vehicle Fueling |
Snap-Tite's receptacles and patented nozzles fully comply with and are certified to the AGA/CGA NGV1 Standard for Compressed Natural Gas Vehicles (NGV) fueling connection devices.
|
